Steel Grating Surface Finish Guide

Q: When is hot-dip galvanized steel grating the default choice?

For most outdoor and industrial applications, hot-dip galvanized carbon steel is the baseline because it balances corrosion resistance, cost, and global fabrication availability. It is typically preferred when lifecycle maintenance needs to stay moderate.

Q: Is painted steel grating suitable for outdoor use?

Painted systems can work when the coating specification, surface preparation, and maintenance plan are controlled. For aggressive outdoor exposure, many projects still prefer galvanizing or duplex systems due to better long-term corrosion margin.

Q: When should buyers consider stainless steel grating?

Stainless steel is usually selected for highly corrosive, hygiene-critical, or chloride-rich environments where lifecycle downtime and maintenance cost justify higher initial material cost.

Q: What is a duplex system on steel grating?

A duplex system combines galvanizing and paint, using zinc for sacrificial protection and coating for barrier and color control. It is often used where both corrosion durability and visual coding are required.

Q: Which finish details should be locked before RFQ?

Define environment class, coating standard, target dry film thickness if painted, touch-up requirements for site cuts, inspection documents, and packaging protection for transit.

1) Start from exposure class, not preference

Finish selection should begin with actual service environment: humidity, chlorides, chemical splash, washdown frequency, and inspection requirements. If exposure is unclear, final finish decisions become subjective and costly later.

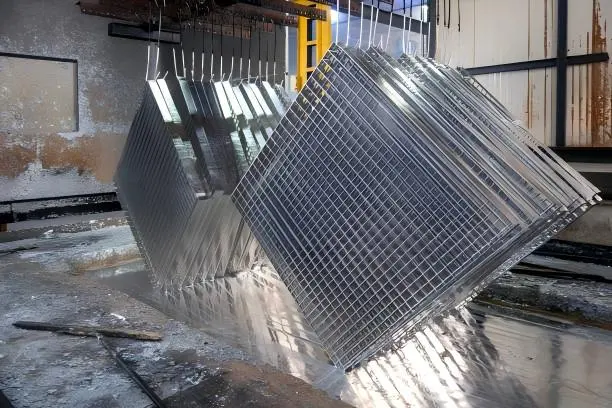

2) Hot-dip galvanized carbon steel

For many projects, hot-dip galvanized welded bar grating is the practical default. It gives robust corrosion tolerance with mature standards and broad supply capability. It also fits common project workflows for stair treads and trench covers.

3) Painted systems and duplex options

Painted steel is often selected for visual coding or where client standards require specific coating systems. In higher-risk environments, duplex protection (galvanized + coating) can extend service life, but only if coating prep, thickness, and inspection points are clearly specified.

4) Stainless steel where downtime is expensive

In chloride-rich or hygiene-critical plants, stainless can be the better lifecycle choice despite higher initial cost. The decision should include maintenance access difficulty, shutdown cost, and contamination constraints.

5) Procurement checklist before final RFQ

Define environment class and corrosion risk assumptions.
State governing finish/coating standards and acceptance criteria.
Clarify requirements for site cut touch-up and weld repair treatment.
Include inspection document list and witness points.
Specify packaging protection for transit and storage period.

6) Practical selection matrix

Cost-first, general industrial: galvanized carbon steel.
Appearance + corrosion control: duplex systems.
High corrosion / hygiene critical: stainless options.

Technical detail: Materials and Finishes. RFQ preparation: How to Specify. Full document pack: Downloads. Project inquiry: RFQ. Material comparison: Steel vs FRP.

Frequently asked questions

When is hot-dip galvanized steel grating the default choice?

For most outdoor and industrial projects, galvanized steel offers strong cost-to-durability balance and mature quality standards.

Is painted steel grating suitable for outdoor use?

Yes, if coating specification and maintenance are controlled. For aggressive exposure, galvanized or duplex systems are often preferred.

When should buyers consider stainless steel grating?

For highly corrosive or hygiene-critical service where maintenance downtime has high cost impact.

What is a duplex system on steel grating?

It combines galvanizing plus paint for both sacrificial and barrier protection, and often better long-term performance.

Which finish details should be locked before RFQ?

Environment class, coating standard, thickness expectations, touch-up rules, inspection docs, and packing protection.
