What angle sizes are typically used?

L63×63×6, L75×75×8 and L100×100×10 mm are common quotation starting points. Final section, support seat, anchors and any intermediate members are selected from the clear opening, load footprint and governing design basis.

Are frames supplied as separate items?

Yes — frames can be ordered separately or as part of a complete trench cover package including grating covers, anchors and locking devices.

What about mid-span cross members?

Cross-member need, section and spacing are determined by the cover span, load-transfer path and frame calculation; they are not assigned from trench width alone.

Home/Products/Angle Frames

Coordinated project component

Angle Frames

Fabricated L-profile steel frames for trench covers and drainage channels. Supplied with matching covers, anchors and locking devices as a complete package.

Add to a System Quote See Specifications

Material & finish optionsCarbon steel / SS400 — HDGStainless steel — 304 / 316LOther materials on request

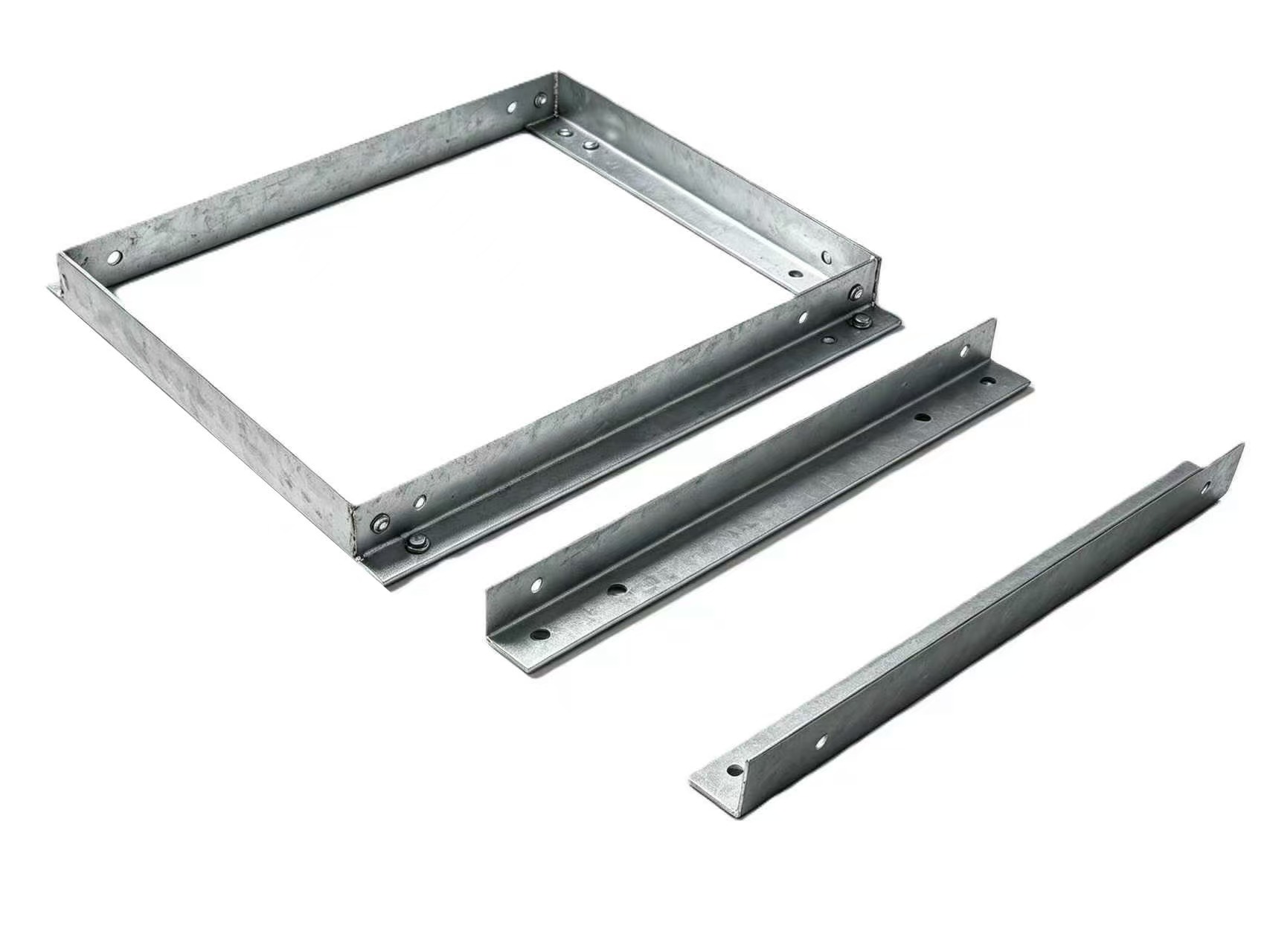

Galvanized angle frame and edge-banding components — Representative product geometry. Material, finish, dimensions and performance are confirmed against the project specification.

Configured for industrial projects

Built around your operating conditions.

Fabricated L-profile steel frames for trench covers and drainage channels. Supplied with matching covers, anchors and locking devices as a complete package.

Dimensions, material and finish confirmed against drawings
Engineering support for spans, loads, installation and standards
Coordinated supply with frames, fixings and edge protection

Send requirements for a quote

What we supply

Angle steel frames — L63 × 63 × 6, L75 × 75 × 8, L100 × 100 × 10 mm. S275JR / ASTM A36 / SS400
Frames recessed into concrete trench walls. Minimum 25 mm bearing surface for grating covers
Cross-members at 600–800 mm centres for trench widths above 600 mm
Hot-dip galvanized to ASTM A123 / EN ISO 1461. Stainless steel 304/316L for corrosive environments
Anchor bolt holes pre-drilled or slotted. J-bolts, L-bolts or wedge anchors supplied per project
State the pedestrian or vehicle load, contact footprint, traffic condition and governing standard; EN 124 class applies only to a qualifying complete assembly
Custom frame dimensions, corner mitre joints and level-adjustment details per your drawing

Used in

Systems

Trench Cover Systems→

Industries

Petrochemical→ Power Generation→ Water & Wastewater→ Industrial Manufacturing→ Data Centers→

How to order

Trench length, width and depth
Design load, contact footprint and traffic condition; add an EN 124 assembly class only when applicable
Frame material: carbon steel HDG / 304 / 316L
Anchor preference and locking device requirements

Supplied to your drawings and project standard. Load tables → · Downloads →

Send Project Requirements — Get a Quote

Selection support

What to confirm before quotation.

Share the application, load, span, material and finish with the RFQ.

Application

State the operating area, access frequency and any wet, corrosive or public-safety conditions.

Engineering inputs

Provide clear span, bearing direction, design load, dimensions and required standards.

Supply scope

Include frames, clips, banding, toe plates, railings and drawings in one coordinated RFQ.

Typical systems

Discuss the operating environment with our engineering team.

Typical industries

Discuss the operating environment with our engineering team.

Complete the system

Include angle frames in a coordinated package quote.

Send Project Requirements
